60 Series-High Pressure Fittings,Nipples and Tubing

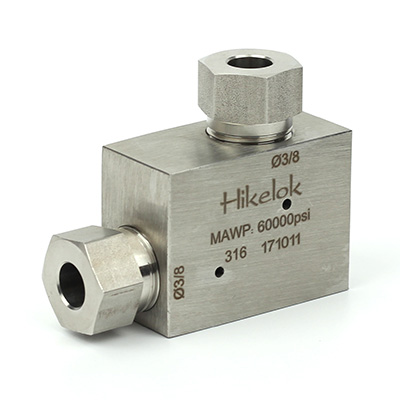

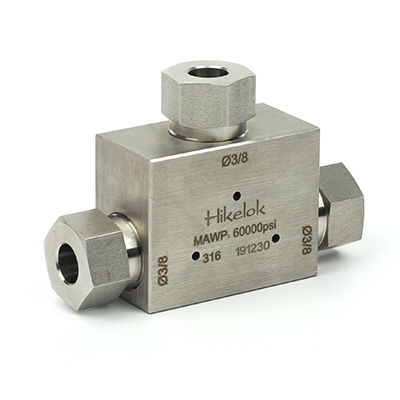

IntroductionHikelok Coned-and-Threaded Connection fittings and tubing. With max 60000psig,a complete range of unions, elbows, tees, and crosses is available for all of the tubing connection sizes. The high and ulta-high pressure series uses Autoclave’s type high pressure connector. This coned and- threaded connection provides dependable performance in gas or liquid service.
FeaturesConed-and-Threaded ConnectionAvailable sizes are 1/4,3/8, 9/16, and 1”Operating Temperatures from -423°F (-252°C) to 1200°F (649°C)Working pressure:1/4, 3/8 and 9/16 in: 60000 psi (4136 bar) and 1 in: 43000 psi (2964.7 bar) Fittings and tubing manufactured from 316 cold worked stainless steelAnti-vibration collet gland assembly sizes from 1/4 to 1 in. (6.35 to 25.4 mm)Moving the stress concentration back to the unthreaded part of the tubing and providing a wedge-typegripping actionCompletely interchangeable with standard Hikelok 60 series medium pressure connectionsAnti-vibration collet gland assembly strengthens the entire structure
AdvantagesHikelok 60 series high pressure fittings are designed for use with 60 series high pressure valvesHikelok 60 series high pressure tubing is manufactured specifically for high pressure applicationsHikelok supplies precut,coned-and-threaded nipples in various sizes and lengths for 60 series high pressure valves and fittings
More OptionsOptional anti-vibration connection componentsOptional 60 series tubing,coned-and-threaded nipples and anti-Vibration collet gland assemblies
