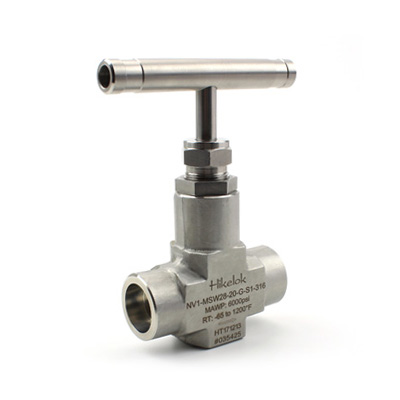

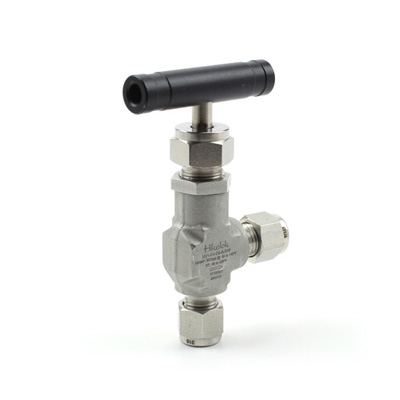

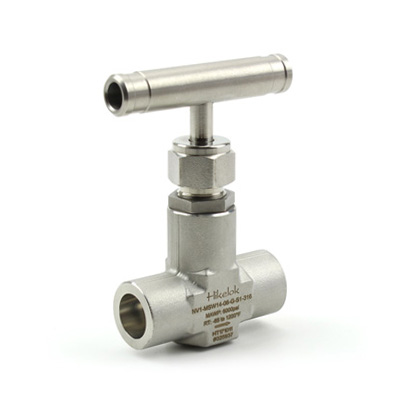

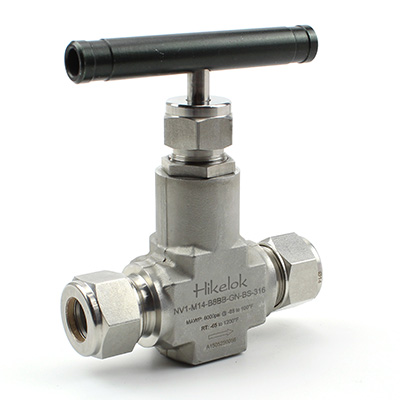

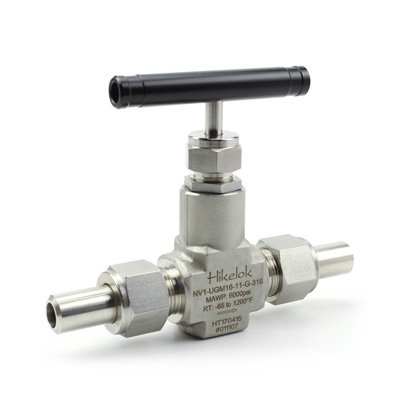

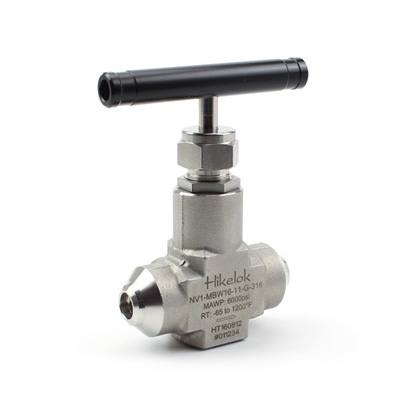

NV1-Needle Valves

IntroductionHikelok NV1 series needle valves have been well accepted and widely used in a variety of industries for many years. Working pressure is up to 6000 psig (413 bar),working temperature is from -65℉ to 1200℉ (-53℃ to 648℃).
FeaturesMaximum working pressure up to 6000 psig (413 bar)Working temperature from -65℉ to 1200℉ (-53℃ to 648℃)One-piece forged bodyStraight and angle patternsUpper stem and lower stem design, Stem threads above packing protected from system mediaPanel mounting availableOptional handle colors available
AdvantagesShroud protects stem threads against ingress of dirt and dustStem threads are cold rolled for high strength and smooth operationStem threads above packing protected from system mediaSafety back seating needle seals in fully open positionNon-rotating, hardened tip for positive shutoffOne-piece stainless steel forged body100% factory tested
More OptionsOptional 2 way straight,2 way angleOptional PTFE and graphite packing materialOptional black,red,green,blue handlesOptional aluminum bar,stainless steel bar,round handles
