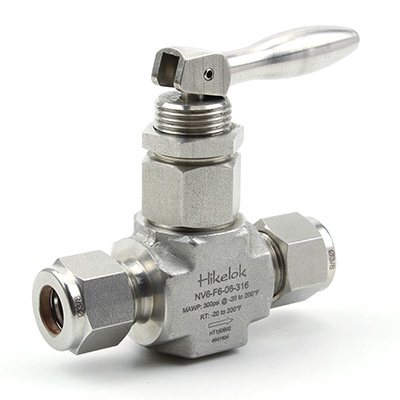

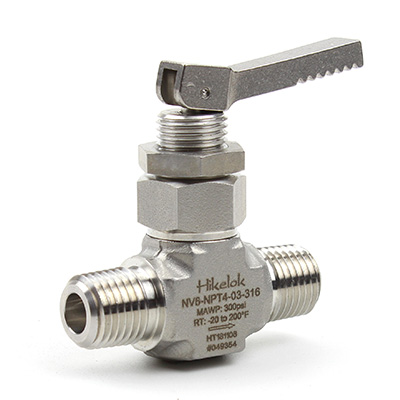

NV6-Toggle Needle Valves

IntroductionHikelok NV6 series toggle needle valves have been well accepted and widely used in a variety of industries for many years. Working pressure is up to 300 psig (20.6 bar),working temperature is from -20℉ to 200℉ (-28℃to 93℃).
FeaturesMaximum working pressure up to 300 psig (20.6 bar)Working temperature from -20℉ to 200℉ (-28℃to 93℃)One-piece forged bodyStraight, angle and cross flow patternsOpens and closes quicklySoft-seat shutoffO-ring stem seal needs no adjustment
AdvantagesCompact, rugged designOpens and closes quicklyOne-piece forged body100% factory tested
More OptionsOptional 2 way straight,2 way angleOptional Fluorocarbon FKM,Buna N,Ethylene Propylene,Neoprene,Kalrez O-Ring Material
