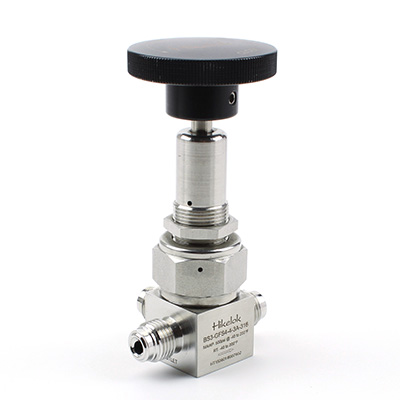

BS3-Bellows-Sealed Valves

IntroductionHikelok BS3 series bellows-sealed valves are available with 316L stainless steel construction—316L VAR for bodies with butt weld end connections. Working pressure is up to 500 psig (34.4 bar),working temperature is from -40℉ to 200℉ (-40℃ to 93℃). Isolate system fluids and achieve reliable, leak-tight performance with Hikelok BS3 series bellows-sealed valves which use a packless design and a gasketed or welded seal. They are ideal for applications where the seal to atmosphere is critical, and we offer multiple options for general and high-purity service.
FeaturesMaximum working pressure up to 500 psig (34.4 bar)Working temperature from -40℉ to 200℉ (-40℃ to 93℃ )Flow coefficients (Cv) : 0.3 and 0.7Variety of end connections316 S.S and 316L VAR S.S. materialsPanel and bottom mountingBar, round handle are availablePrecion-formed metal bellows providers reliable sealNonrotating stem tipBonnet seals to body without gasketActuator-stem coupling design for smooth actuationEvery valve is tested with helium for 10s to a maximum leak rate of 4×10-9 std cm3/s
AdvantagesActuator-stem coupling design for positive stem retraction and smooth actuationUnion bonnet construction for safetyStem guiding outside of system fluid for clean operationPrecision-formed metal bellows for reliabilityNonrotating stem tip for increased shutoff cycle life100% factory tested
More OptionsOptional 2 way straight,2 way angle,3 way,4 wayOptional blue, black,red,green handles
