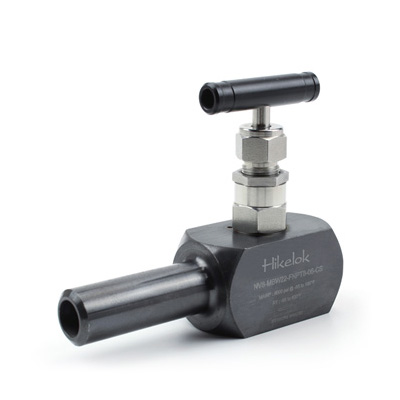

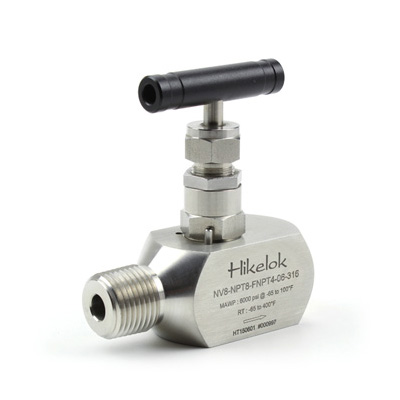

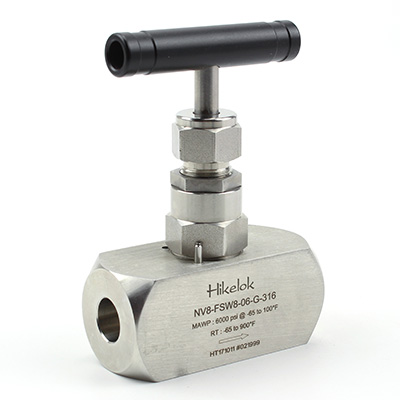

NV8-Bar Stock Needle Valves

IntroductionHikelok bar stock needle valves are purpose designed valves for operation with any fluid up to 6,000 psig (414 barg) rating. For gaseous application, soft tipped optional seating is available. A wide variety of end connectors are offered for all types of installation. NACE compliant materials and oxygen clean are also available, along with an extensive list of materials of construction.
FeaturesMaximum working pressure up to 6000 psig (413 bar) Working temperature from -65℉ to 1200℉ (-53℃to 648℃) Bar stock valve body Straight and angle patterns Upper stem and lower stem design, Stem threads above packing protected from system media Two-piece knuckle joint provides nonrotating needle feature Nonrotating, hardened needle for positive shutoff Safety back-seating in fully open position Optional handle colors available
AdvantagesUpper stem and lower stem design, Stem threads above packing protected from system media Two-piece knuckle joint provides nonrotating needle feature Nonrotating, hardened needle for positive shutoff Safety back-seating in fully open position 100% factory tested
More OptionsOptional 2 way straight,2 way angle Optional same as body, stellite tip material Optional blunt,regulating,ball,PTFE,PCTFE,PEEK tip type Optional PTFE,graphite packing material Optional panel mounting Optional black,red,green,blue handles Optional aluminum bar,stainless steel bar handles
