Introduction

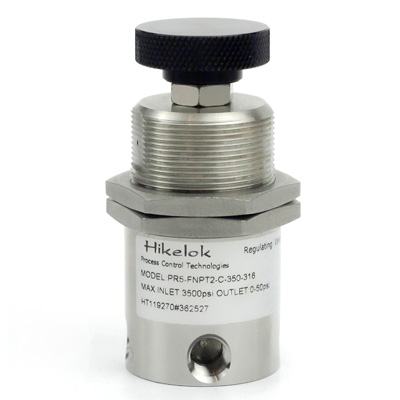

Hikelok PR5-Pressure reducing regulator control outlet pressure by balancing an adjustable spring force against the forces caused by inlet and outlet pressures. The spring force is adjusted by turning the stem/handle, which sets the desired outlet pressure.
Features
■ Maximum inlet pressure up to 3600 psig (248 bar)
■ Working temperature from -40°F to 140°F (-40°C to 60°C) with PCTFE and -40°F to 392°F (-40°C to 200°C with PEEK
■ Flow coefficients (Cv) is 0.06
■ 1/8 in. female NPT inlet, outlet, and gauge ports
■ 316 stainles steel body material
■ Panel mounting
■ High-flow, dual-gauze type filter in inlet ports
■ Fully contained piston
■ Low internal volume
■ The operating torque is small and the adjustment is convenient
Advantages
■ The PR5 series is a compact piston-induced pressure regulator with a short strok.
■ Minimize wear and tear in high-cycle applications.
■ 100% factory tested
■ Robust piston sensed design to provide safety and reliability
More Options
■ Optional SS316,stellite tip material
